Powerful flexibility
The centering clamping fixture is the perfect complement to your modular clamping rail system. Components can be centrally clamped using grip jaws, carbide-coated jaws or profiled jaws. Round parts can be clamped using prism jaws.
Variable range of application
Direct mounting on the modular clamping rail system, can be offset by 90°, or on the zero point clamping system. Ideal for 5-axis machining on one extension base.
Version:

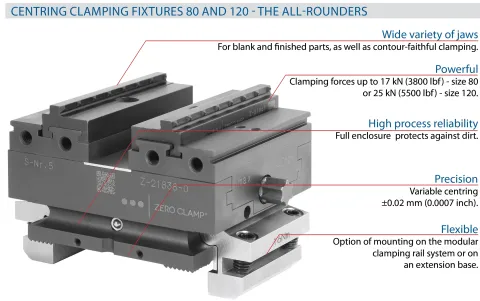

Mechanical centring clamping fixture with closed clamping mechanism.
Application:
For centrally clamping blank parts (ideal with grip top jaw set) and finished parts (ideal with an carbide top jaw set). Suitable for clamping rail SL080, extension base 22291/27589 and 22294.
